Solar Panel "PREMIUM SOLAR"
PREMIUM SOLAR
Solar Panel "PREMIUM SOLAR"
Single Crystal (Half-Cut) 435/440/445W
It has been developed for the purpose of commercial use "Hi Quality" "Hi Module Efficiency" "Reliability" "Durability" Premium Solar has all the unique propositions as above.
- Global Tier 1
bankable brand - 12% more power than
conventional module - Lower power degradation
Lower internal current
Lower hot spot temperature - Outstanding mechanical
load resistance - Anti-PID Test
- Great Durability against
extreme conditions - World famous insurance

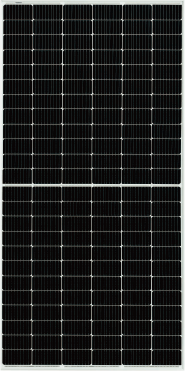

HALF-CUT CELL
What is a half-cut cell?
A solar panel (solar module) consists of what is called a cell (power generation element). A half-cut cell is a cell that is half the size of the conventional one.
The half-cut cell is about half the size of a normal cell, and it is said that power generation efficiency is improved by reducing the electrical resistance. Even in the hot summer months, it is possible to prevent a drop in conversion efficiency due to high temperatures, and it can be expected to generate power more efficiently.
Advantages of half-cut cell
-
ADVANTAGE 1

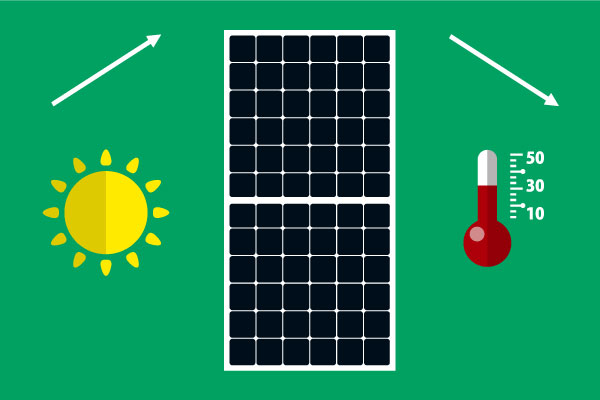

Suppression of panel temperature rise
As the panel temperature rises, the efficiency of power generation deteriorates, so it is possible to improve efficiency by suppressing the temperature rise. In addition, it is said that the temperature rise "hot spot" caused by local shadows caused by fallen leaves and bird droppings is less likely to occur because the temperature is less likely to rise than in conventional cells.
-
ADVANTAGE 2

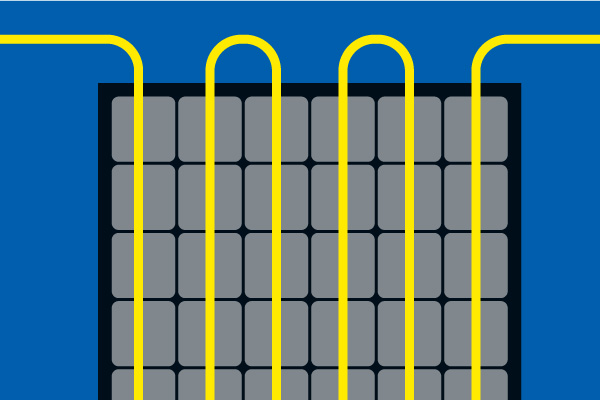

The temperature rise of the bypass diode can be suppressed
Bypass diodes are elements that are used in combination with solar panels to avoid cells that have not been able to generate electricity. When the bypass diode has heat, it cannot be avoided properly and efficient power generation cannot be performed. The half-cut cell can also suppress the temperature rise of the bypass diode.
-
ADVANTAGE 3

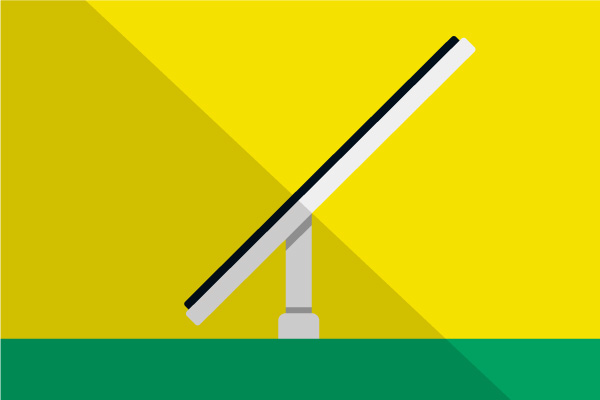

Reduction of power generation loss due to shadows
In the case of a normal full-cell panel, if a shadow was cast on the panel, power generation loss also occurred in the non-shadowed area, but in the case of a half-cut cell, if the module is installed vertically, the shadow will be cast on the bottom of the panel. Even if it does, the upper part of the panel can generate electricity without being affected by the shadow.
This suppresses output loss and leads to an increase in power generation.
SPECIFICATIONS
Specifications

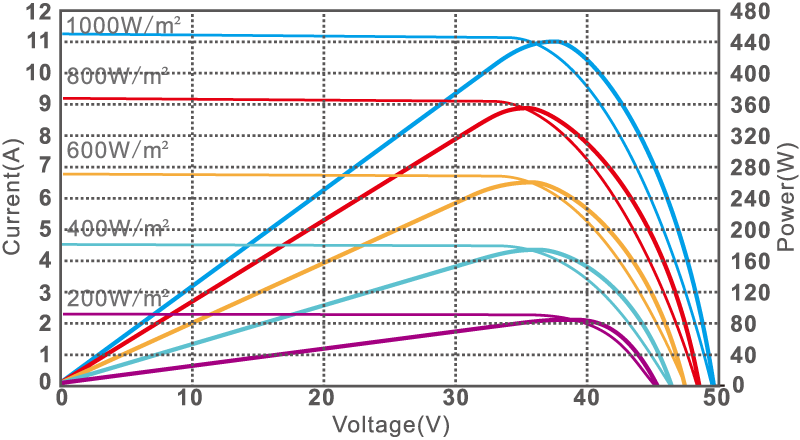

ELECTRICAL PERFORMANCE
Electrical Parameters Standard Test Conditions
| Module Type | 10FF-435M-144 | 10FF-440M-144 | 10FF-445M-144 | ||
|---|---|---|---|---|---|
| Power Output | Pmax | W | 435 | 440 | 445 |
| Power Tolerance | △Pmax | W | 0 / +5W | ||
| Module Efficiency | ηm | % | 19.69 | 19.92 | 20.14 |
| Voltage at Pmax | Vm | V | 40.7 | 40.8 | 40.9 |
| Current at Pmax | Im | A | 10.69 | 10.78 | 10.88 |
| Open-Circuit Voltage | Voc | V | 49.5 | 49.6 | 49.7 |
| Short-Circuit Current | Isc | A | 11.25 | 11.34 | 11.45 |
STC: 1000w/㎡ irradiance, 25℃ module temperature, AM1.5

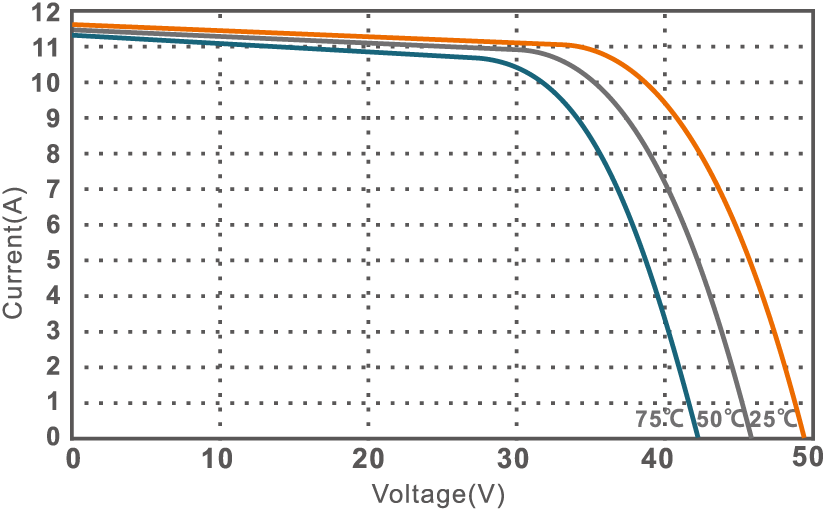

THERMAL CHARACTERISTICS
| Nominal Operating Cell Temperature | NOCT | ℃ | 45±2 |
|---|---|---|---|
| Temperature Coefficient of Pmax | γ | %/℃ | -0.360 |
| Temperature Coefficient of Voc | βvoc | %/℃ | -0.290 |
| Temperature Coefficient of Isc | αisc | %/℃ | +0.049 |
OPERATING CONDITIONS
| Max.System Voltage | — |
|---|---|
| Max.Series Fuse Rating | — |
| Operating Temperature Range | -40℃~85℃ |
| Max Static Snow Load | 5400Pa |
| Max Static Wind Load | 3800Pa |
| Application Class | A |
CONSTRUCTION MATERIALS
| Front Cover (material / type / thickness) | low-iron tempered glass / 3.2mm |
|---|---|
| Cell (quantity / material / type / dimension) | 144 / monocrystalline / 166×83mm |
| Encapsulant (material) | ethylene vinyl acetate (EVA) |
| Frame (material / anodization color) | anodized aluminium alloy / silver or black |
| Junction Box (protection degree) | IP68 |
| Cable (length / cross-sectional area) | 1200mm / 4㎟ |
| Plug Connector | MC4 compatible |
GENERAL CHARACTERISTICS
| Dimension (L/W/H) | 2108 / 1048 / 40㎜ |
|---|---|
| Weight | 24.2kg |
PACKING CONFIGURATION
| Pallet Size (L/W/H) | 2150 / 1120 / 2500㎜ |
|---|---|
| Pallet Weight | 1406kg |
| Pieces per Pallet | 54pcs |
| Pieces per Container | 594pcs |
INTERNATIONAL CERTIFICATES
| IEC 61215,IEC61730 |
|---|
| ISO 9001:2015 (Quality management systems) |
| ISO 14001:2015 (Environmental management systems) |
| OHSAS 18001:2015 (Occupational health and safety) |
